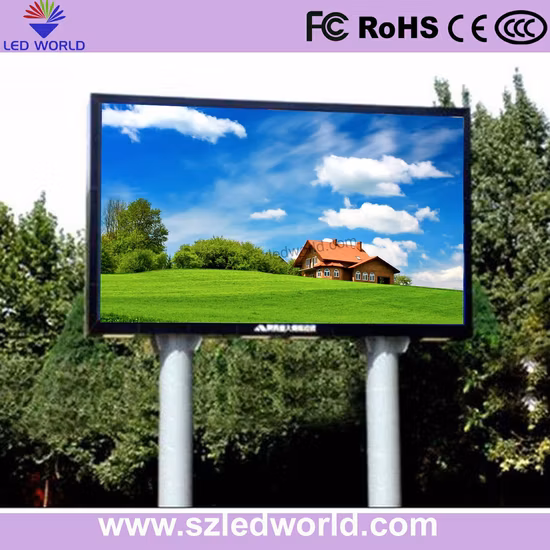

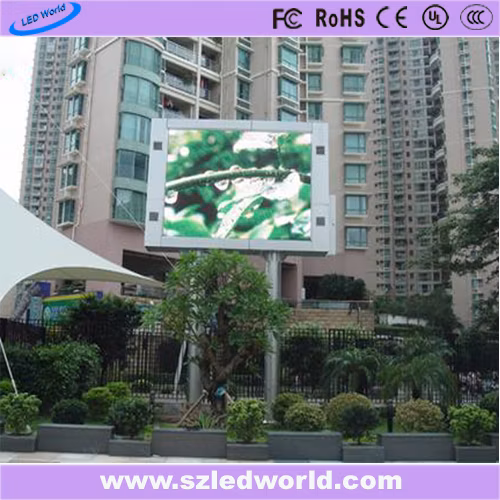

65" Outdoor Full Dust Proof & Anti-Theft LCD Advertising Signs

surface

board

Senate

number

Panel type

65" LCD panel

Display size

1428.5*803.5

Display scale

16:9

Backlight type

LED

Resolution

1920*1080

Brightness

2000cd/m²

Contrast

3000:1

Viewing angle

178°(H) / 178°(V)

Service life

60000 hours

Front protective glass

6mm AR laminated glass

99.99% sun UV

More than 50% of solar radiation

Light transmittance is over 93%

Reflectance is less than 3%

The total heat insulation rate of sunlight is over 50%

Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater)

cooling system

Fully intelligent independent research and development of cooling system

Voltage 24V

Operating voltage 20.4-27.6V

Starting voltage 12V

Average speed 2400 rpm minimum speed 2160 rpm

Average current 0.26A maximum current 0.312

Access to power average 3.12 max 3.74

Average airflow 74 minimum airflow 66.6

Average static pressure 2.0 Minimum static pressure 1.8

Noise 33db

It can automatically adjust the fan speed according to the working temperature, with heating function to meet the outdoor work of -40-55 degrees.

Electrical parts

Backlight power supply

According to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers)

Automatic light perception

Automatic Photosensitive Probe - Automatically recognizes the surrounding environment to automatically adjust the screen brightness

Lightning protection device

Zhengtai lightning protection device

AC contactor

Chint AC contactor

Microcomputer time switch

Time switch can be set in different time periods. More than 20 groups can be set.

power input

AC 108-115V AC 208-240V

Total power

300W

Nanocapacitor touch film

Types

Nano touch

Touch mode

finger

Touch effective recognition

>=5mm

Touch accuracy

±5mm

Touch points

10 Points

First response time

10 milliseconds

Number of touches

Any

work

Make

ring

territory

Fan power supply

24V

Screen display and backlight power supply

24V+12V hybrid power supply 200-400W

Operating temperature

-35-55°

Product related

storage temperature

-20°C to 60°C

Working humidity

5% to 100%

Storage humidity

5% to 100%

Installation method

Floor-mounted installation

External structural member

Shape packaging

Use pearl cotton shock absorber + wooden frame packaging

Exterior color

black

shell material

Hot-dip galvanized steel sheet T=1.5+ outdoor double-sided spray outdoor powder

Gross weight

180KG

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, bars
